Container Loading Machine: Speed Up Your Logistics, Cut Down Costs

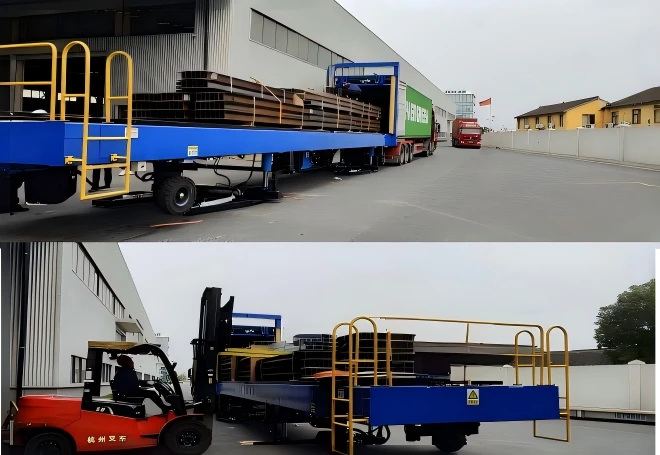

Tired of container loading becoming a bottleneck in your supply chain? Our Container Loading Machine is the robust solution built for factories, warehouses, and logistics hubs that handle high-volume shipping. It seamlessly integrates into your workflow, automatically transferring palletized or stacked goods into standard shipping containers quickly and precisely. By automating the most physically demanding stage of the process, the Container Loader significantly reduces loading times and labor costs while minimizing product damage caused by manual handling. This is precisely the efficiency boost your business needs to remain competitive.
Engineered for Power and Adaptability
The Container Loader features a high-strength steel frame, ensuring stability and durability during continuous, heavy-duty operation. Its intelligent control system enables smooth horizontal and vertical adjustments, guaranteeing precise alignment with container doors. Unlike traditional solutions, this equipment utilizes a modular design that offers excellent mobility and allows for flexible configuration to suit various loading dock layouts.
Technical Specifications
|
Model |
SGTS40f30T |
|
Overall dimensions (length, width, height) |
14260mm×3129mm×4593mm |
|
Applicable container specifications and models |
40-foot high container and standard containers of smaller sizes(GB/T 1413-2008 Series 1 Container Classification, Dimensions and Rated Mass) |
|
Theoretical self-weight of the complete machine |
17 T |
|
Maximum cargo capacity |
30T |
|
Maximum loading length |
12000mm |
|
Maximum loading width |
2220mm |
|
Maximum loading height |
2515mm |
|
Platform height range |
Distance from the lower surface to the ground 970 mm~1780mm |
|
Push itinerary |
12900mm |
|
walking speed |
It depends on the model |
|
Transfer platform pushing speed |
0～4m/min |
|
power supply voltage |
220-440v |
|
Control circuit voltage |
DC24V |
|
hydraulic power unit |
15kW, 16MPa |
|
Working pressure of hydraulic system |
15MPa |
|
Hydraulic oil model |
L-HM46 anti-wear hydraulic oil |
|
Safety protection |
Undervoltage protection, overload protection, emergency stop protection, audible and visual alarm |
|
Control box |
Protection level IP54 |
|
Control method |
Controller + Remote |
|
Ambient temperature |
-15℃~+40℃ |
|
Altitude |
≤1000m |
|
Operating relative humidity |
≤90% |
Services
We ensure your investment delivers value from day one. Our support package includes detailed installation guidance, comprehensive operator training, and a 12-month warranty on core components. We provide lifelong technical consultation and maintain a reliable global network for genuine spare parts to minimize your downtime.
